XIAP

  • Official Full Name

    X-linked inhibitor of apoptosis
  • Overview

    This gene encodes a protein that belongs to a family of apoptotic suppressor proteins. Members of this family share a conserved motif termed, baculovirus IAP repeat, which is necessary for their anti-apoptotic function. This protein functions through binding to tumor necrosis factor receptor-associated factors TRAF1 and TRAF2 and inhibits apoptosis induced by menadione, a potent inducer of free radicals, and interleukin 1-beta converting enzyme. This protein also inhibits at least two members of the caspase family of cell-death proteases, caspase-3 and caspase-7. Mutations in this gene are the cause of X-linked lymphoproliferative syndrome. Alternate splicing results in multiple transcript variants. Pseudogenes of this gene are found on chromosomes 2 and 11.[provided by RefSeq, Feb 2011]
  • Synonyms

    XIAP;X-linked inhibitor of apoptosis;API3;ILP1;MIHA;XLP2;BIRC4;IAP-3;hIAP3;hIAP-3;E3 ubiquitin-protein ligase XIAP;X-linked IAP;IAP-like protein;inhibitor of apoptosis protein 3;baculoviral IAP repeat-containing protein 4

Recombinant Proteins

  • Human
  • Mouse
  • Chicken
  • Rat
  • Zebrafish
  • E.coli
  • Sf9 Insect Cell
  • Mammalian Cell
  • Wheat Germ
  • Insect Cell
  • HEK293T
  • HEK293
  • Mammalian cells
  • Non
  • Avi
  • GST
  • His
  • GST&StrepII
  • His&StrepII
  • Flag
  • Myc&DDK
  • His&T7
  • His&Fc&Avi
  • His&SUMO
Cat.# Product name Source (Host) Species Tag Protein Length Price
XIAP-243H Active Recombinant Human XIAP E.coli Human Non
XIAP-3103H Active Recombinant Human XIAP protein, Avi-tagged E.coli Human Avi Leu121-Thr356
XIAP-1503H Recombinant Human X-linked Inhibitor Of Apoptosis, GST-tagged Sf9 Insect Cell Human GST
XIAP-18605M Recombinant Mouse XIAP Protein Mammalian Cell Mouse His
XIAP-226H Recombinant Human XIAP Protein, GST-tagged Wheat Germ Human GST
XIAP-245H Recombinant Human XIAP Protein, GST/StrepII-tagged E.coli Human GST&StrepII 255-356
XIAP-246H Recombinant Human XIAP Protein, His/StrepII-tagged E.coli Human His&StrepII 255-356
XIAP-30701TH Recombinant Human XIAP, FLAG-tagged Insect Cell Human Flag 496 amino acids
XIAP-399H Recombinant Human XIAP Protein, MYC/DDK-tagged HEK293T Human Myc&DDK
XIAP-410H Recombinant Human XIAP, His-tagged E.coli Human His Asn252-Thr356
XIAP-6157C Recombinant Chicken XIAP Mammalian Cell Chicken His
XIAP-6610R Recombinant Rat XIAP Protein Mammalian Cell Rat His
Xiap-7936M Recombinant Mouse Xiap protein, His & T7-tagged E.coli Mouse His&T7 Gly8~Glu219
XIAP-9746Z Recombinant Zebrafish XIAP Mammalian Cell Zebrafish His
XIAP-263HCL Recombinant Human XIAP 293 Cell Lysate HEK293 Human Non
XIAP-0711H Recombinant Human XIAP Protein (Y120-P260), Tag Free E.coli Human Non Y120-P260
XIAP-0712H Recombinant Human XIAP Protein (Y120-P260), GST tagged E.coli Human GST Y120-P260
XIAP-10221M Recombinant Mouse XIAP Protein, His (Fc)-Avi-tagged HEK293 Mouse His&Fc&Avi
XIAP-10221M-B Recombinant Mouse XIAP Protein Pre-coupled Magnetic Beads HEK293 Mouse
XIAP-1757HFL Recombinant Full Length Human XIAP Protein, C-Flag-tagged Mammalian cells Human Flag Full L.
XIAP-2365H Recombinant Human XIAP Protein, His (Fc)-Avi-tagged HEK293 Human His&Fc&Avi
XIAP-2365H-B Recombinant Human XIAP Protein Pre-coupled Magnetic Beads HEK293 Human
XIAP-247H Recombinant Human XIAP protein, His-SUMO-tagged E.coli Human His&SUMO 1-497aa
XIAP-2775H Recombinant Human XIAP Protein, Myc/DDK-tagged, C13 and N15-labeled HEK293T Human Myc&DDK
XIAP-2812H Recombinant Human XIAP protein(351-430 aa), C-His-tagged E.coli Human His 351-430 aa
XIAP-2873H Recombinant Human Full length XIAP protein(1-497 aa), C-His-tagged E.coli Human His Full L. 1-497 aa
XIAP-3770H Recombinant Human XIAP protein, His-SUMO-tagged E.coli Human His&SUMO 1-497aa
XIAP-5851H Recombinant Human XIAP Protein (Met1-Ser497), N-His tagged E.coli Human His Met1-Ser497
XIAP-6266R Recombinant Rat XIAP Protein, His (Fc)-Avi-tagged HEK293 Rat His&Fc&Avi
XIAP-6266R-B Recombinant Rat XIAP Protein Pre-coupled Magnetic Beads HEK293 Rat
Xiap-626M Recombinant Mouse Xiap Protein, MYC/DDK-tagged HEK293T Mouse Myc&DDK

    Background

    What is XIAP Protein?

    XIAP gene (X-linked inhibitor of apoptosis) is a protein coding gene which situated on the long arm of chromosome X at locus Xq25. This gene encodes a protein that belongs to a family of apoptotic suppressor proteins. Members of this family share a conserved motif termed, baculovirus IAP repeat, which is necessary for their anti-apoptotic function. This protein functions through binding to tumor necrosis factor receptor-associated factors TRAF1 and TRAF2 and inhibits apoptosis induced by menadione, a potent inducer of free radicals, and interleukin 1-beta converting enzyme. This protein also inhibits at least two members of the caspase family of cell-death proteases, caspase-3 and caspase-7. The XIAP protein is consisted of 497 amino acids and XIAP molecular weight is approximately 56.7 kDa.

    What is the Function of XIAP Protein?

    XIAP is basically this protein that steps in to prevent cells from going into self-destruct mode, also known as apoptosis. It does its job by latching onto certain proteins like TRAF1 and TRAF2, which are involved in cell death signaling. XIAP is pretty effective at stopping apoptosis triggered by things like menadione, which produces a ton of free radicals, and another factor called interleukin 1-beta converting enzyme. Plus, it keeps caspase-3 and caspase-7, which are part of the cell's death machinery, in check, ensuring cells stay alive when they need to.

    XIAP Related Signaling Pathway

    The XIAP protein plays a crucial role in blocking cell death. It achieves this by inhibiting certain caspases, specifically caspase-3 and caspase-7, which are enzymes that drive the apoptosis or programmed cell death process. In simpler terms, XIAP acts as a bodyguard for cells, stopping them from self-destructing under stress conditions, like when exposed to harmful compounds such as free radicals. This protective mechanism is part of a broader signaling pathway where XIAP interacts with other proteins, like TRAF1 and TRAF2, to ensure cell survival and prevent unwanted cell death, especially in situations where cells might be under attack, thereby maintaining normal cellular functions and health.

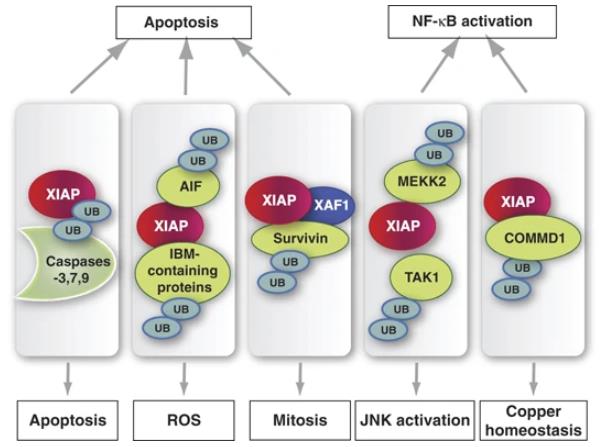

    Fig1. E3 ubiquitin-ligase substrates of XIAP. (S Galbán, 2009)

    XIAP Related Diseases

    XIAP, short for X-linked inhibitor of apoptosis protein, is a key player in the body's way of preventing cell death. It's like a molecular bodyguard, keeping certain cells from self-destructing when they're exposed to stress or damage signals that typically trigger apoptosis, or programmed cell death. Now, when XIAP goes haywire, it can be linked to various diseases. For example, if it's not working properly, it might fail to stop certain harmful processes that lead to excessive cell death, which is tied to neurodegenerative diseases like Parkinson's. On the flip side, if XIAP is overly active, it might prevent cancer cells from dying, contributing to the progression of cancers by letting damaged cells survive. Hence, XIAP's role in keeping the balance of cell death processes is crucial, and any imbalance can connect to several diseases, making it a target of interest for therapies aiming to either ramp up or dial down its activity.

    Bioapplications of XIAP

    XIAP, short for X-linked inhibitor of apoptosis protein, has some intriguing bioapplications. In simple terms, it's like a bodyguard for cells, stopping them from self-destructing by blocking certain proteins called caspases that lead to cell death. Because of this talent, scientists see potential in using XIAP to develop therapies for diseases where cell death is a problem, like certain neurodegenerative disorders and heart conditions. Plus, there's research into how tackling XIAP might help cancer treatments since it sometimes helps cancer cells dodge death. So, XIAP is pretty much a hot topic in the world of science and medicine!

    Case Study

    Case Study 1: Si-Eun Yun, 2018

    Regulating cell death, or apoptosis, is crucial for treating cancer and neurodegenerative diseases. Researchers have been exploring ways to either trigger or stop cell death to tackle these conditions. To develop effective drugs, it's important to understand how the target molecules work and their biochemical properties. XIAP is a standout among these molecules because it can block cell death by stopping certain enzymes, caspase-9 and -3/7, from doing their job. Although XIAP is a promising target for controlling cell death, studying its biochemical and biophysical aspects is no easy task. In one study, scientists used a system to prepare and analyze XIAP and its variants, 242Δ and Δ230, which act as blockers for caspase-9 and -3/7. These inhibitors were grown in E. coli bacteria and expressed at high concentrations. By applying a straightforward and quick purification method, researchers managed to achieve a high yield of these inhibitors at about 90% purity.

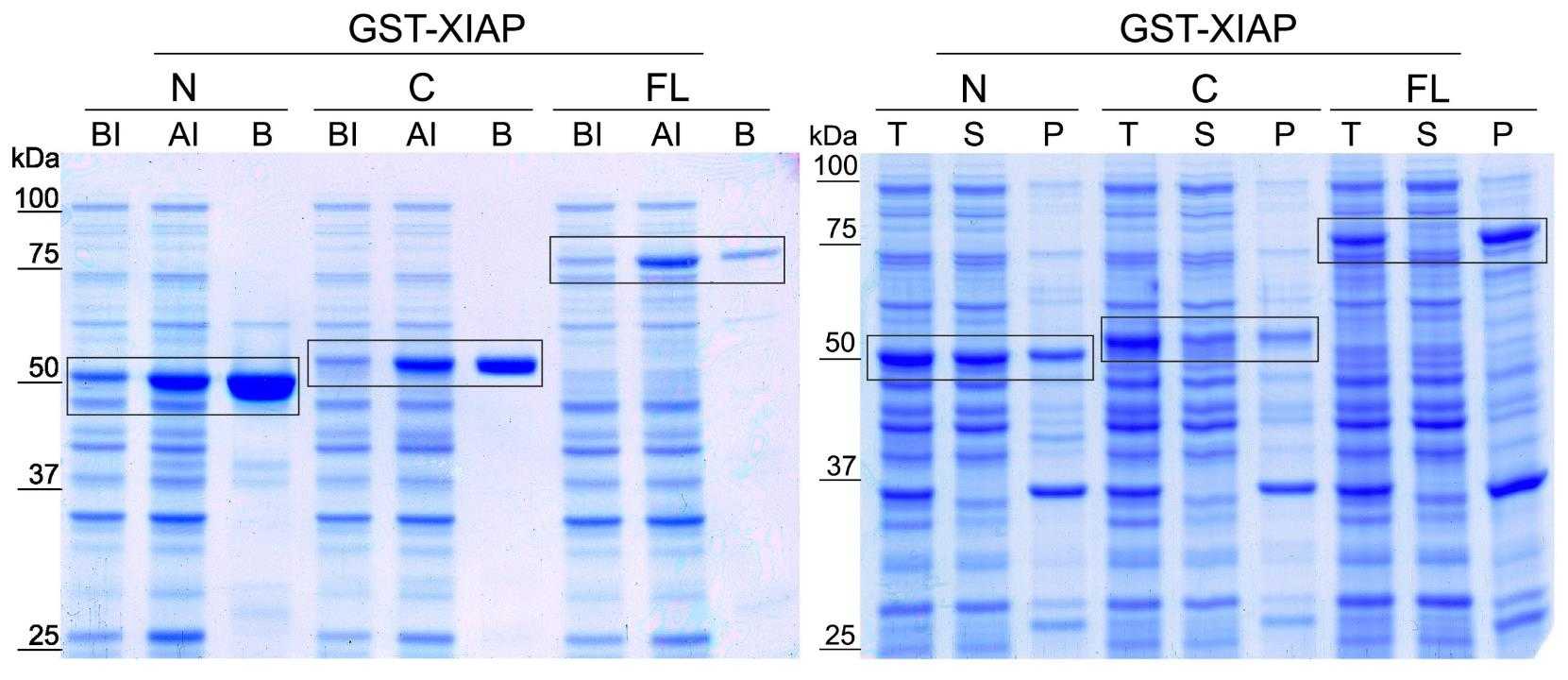

    Fig1. Expression of the XIAP proteins.

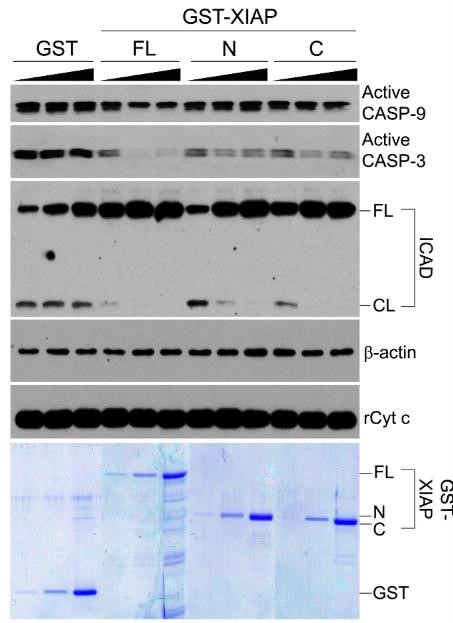

    Fig2. Immunological verification of CASP-3 inhibition by XIAP.

    Case Study 2: Elena Coccia, 2020

    The long version of the Fas apoptosis inhibitory molecule, known as FAIM-L, acts as a neuron-specific blocker against cell death receptors, helping manage neuron survival and flexibility. It combats cell death by teaming up with the X-linked inhibitor of apoptosis protein (XIAP), which stops the enzymes called caspases that drive apoptosis. Normally, XIAP levels are controlled by a system that tags it for breakdown, but when FAIM-L pairs with XIAP, it shields XIAP from being destroyed, allowing it to keep caspases in check. This combo also influences other roles caspases play, like how nerve cells adjust over time, such as during processes that weaken synaptic connections. The exact workings of FAIM-L are not fully clear since its binding sites aren't well-defined. Through certain testing, researchers uncovered that FAIM-L and SIVA-1, a protein inclined to promote cell death, can interact. SIVA-1 disrupts the FAIM-L and XIAP partnership, which leads to XIAP being tagged for breakdown, caspase activation, and neuron death. Additionally, SIVA-1 aids in the internalization of synaptic receptors, especially when there's chemical signaling to weaken synapses, by triggering non-death-related caspase actions.

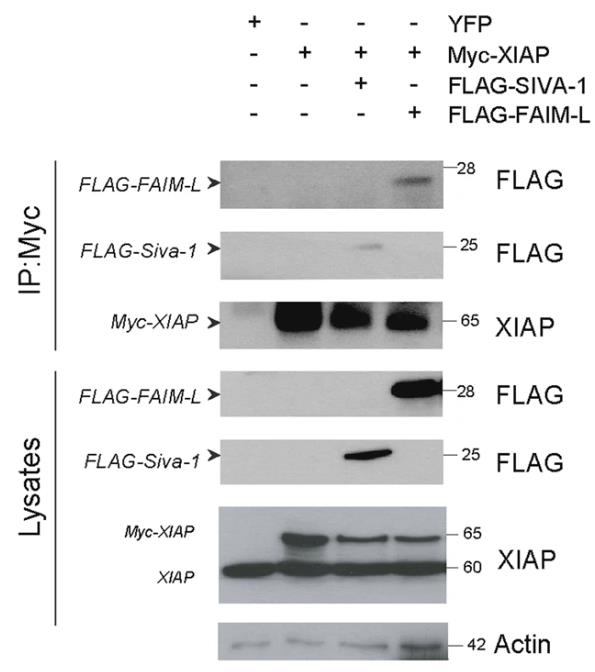

    Fig3. Immunoprecipitation of Myc-XIAP using anti-Myc antibody.

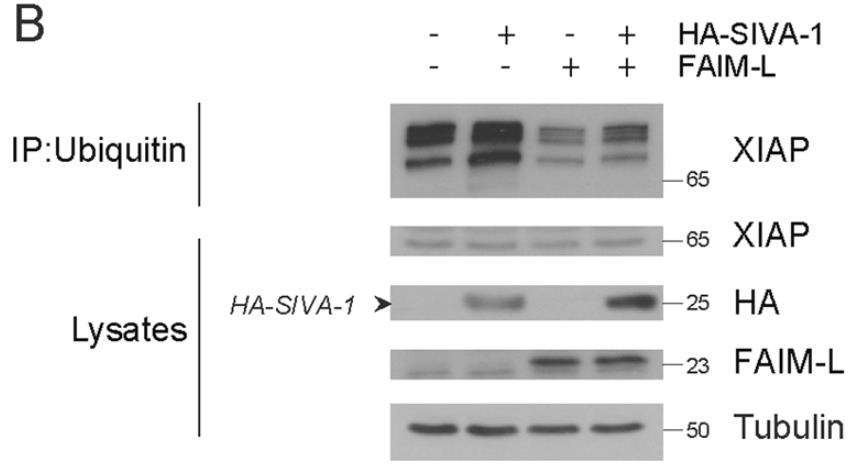

    Fig4. The membrane was blotted with FAIM-L, XIAP, and HA to detect SIVA-1, and tubulin was used as a loading control.

    Quality Guarantee

    High Purity

    SDS-PAGE (XIAP-226H).jpg

    Fig1. SDS-PAGE (XIAP-226H)

    .

    SDS-PAGE (XIAP-2775H).jpg

    Fig2. SDS-PAGE (XIAP-2775H)

    Involved Pathway

    XIAP involved in several pathways and played different roles in them. We selected most pathways XIAP participated on our site, such as NF-kappa B signaling pathway,Ubiquitin mediated proteolysis,Apoptosis, which may be useful for your reference. Also, other proteins which involved in the same pathway with XIAP were listed below. Creative BioMart supplied nearly all the proteins listed, you can search them on our site.

    Pathway Name Pathway Related Protein
    Focal adhesion MET,CCND2A,COL2A1,CAPN2,PDGFAB,MYL9A,GSK3AA,LAMA3,MAPK3,PDGFRA
    Ubiquitin mediated proteolysis HERC2,CUL4B,CUL2,CDC20,KLHL13,UBE4A,ITCHA,SIAH2L,PIAS4B,FZR1
    Toxoplasmosis HLA-DRB4,PIK3R2,MAPK12,LAMB4,HSPA2,LAMA2,GNAI1,CASP8,PIK3R1,TGFB1
    Small cell lung cancer PIK3CG,PIK3R2,IKBKG,FHIT,CASP9,LAMA4,CCNE2,PIAS2,TRP53,RXRB
    NF-kappa B signaling pathway TRAF5,TNFSF14,TNFSF11,TLR4,GM13304,GM10591,MAP3K7IP3,CCL4L2,UBE2I,BCL2
    HTLV-I infection TGFBR1,IL6,H2-AB1,Pdgfa&Pdgfb,FOS,POLD4,ELK1,STAT5B,EP300,BCL2L1
    Apoptosis PIK3R5,CYCS,CAPN2B,PRKACB,AKT2,SATB1,PRKACBB,GZMF,PPP3CCA,HELLS
    Pathways in cancer MAPK8,BMP2,PRKACA,PTCH1,TFG,STK4,SMAD2,Fgf15,LPAR4,MAPK9

    Protein Function

    XIAP has several biochemical functions, for example, cysteine-type endopeptidase inhibitor activity involved in apoptotic process,ligase activity,protein binding. Some of the functions are cooperated with other proteins, some of the functions could acted by XIAP itself. We selected most functions XIAP had, and list some proteins which have the same functions with XIAP. You can find most of the proteins on our site.

    Function Related Protein
    protein binding TMEM88,Siglec1,SKA3,PPP5C,TMEM30B,AZU1,MMS22L,ASCC1,DAG1,CBFA2T2
    ubiquitin-protein transferase activity AMFR,UBR3,ITCH,FBXO3,FBXO30B,CDC34,TOPORS,BIRC2,UBE2D2A,UBE2L3
    ligase activity BTRC,LNX1,TRIM68,PDZRN3,UBOX5,PELI3,PJA1,TRAF6,UHRF2,SMURF2
    zinc ion binding UQCRC1,KDM5C,LTN1,CXXC1B,ZCRB1,RXRAA,MICALL1,MAN2B1,MEX3B,RNF4
    ubiquitin protein ligase activity UBR1,PDZRN4,HERC2,RNF149,SIAH2,TRIM37,PDZD4,UBE2J1,RNF24,UBE2G1B
    cysteine-type endopeptidase inhibitor activity involved in apoptotic process LEF1,ARRB1,BIRC2,SERPINB9,PRDX5,SNCA,TNFSF14,C1QL4L,PRDX3,RPS6KA3

    Interacting Protein

    XIAP has direct interactions with proteins and molecules. Those interactions were detected by several methods such as yeast two hybrid, co-IP, pull-down and so on. We selected proteins and molecules interacted with XIAP here. Most of them are supplied by our site. Hope this information will be useful for your research of XIAP.

    CASP9;HTRA2

    Resources

    Research Area

    Survivin / IAPs
    IAPs

    References

    • Liu, GH; Du, PJ; et al. Myeloid Differentiation Factor 88 Promotes Cisplatin Chemoresistance in Ovarian Cancer. CELL BIOCHEMISTRY AND BIOPHYSICS 71:963-969(2015).
    • Ehrenschwender, M; Bittner, S; et al. XIAP-targeting drugs re-sensitize PIK3CA-mutated colorectal cancer cells for death receptor-induced apoptosis. CELL DEATH & DISEASE 5:-(2014).
    • Mori, N; Ishikawa, C; et al. Activation of PKC-delta in HTLV-1-infected T cells. INTERNATIONAL JOURNAL OF ONCOLOGY 46:1609-1618(2015).
